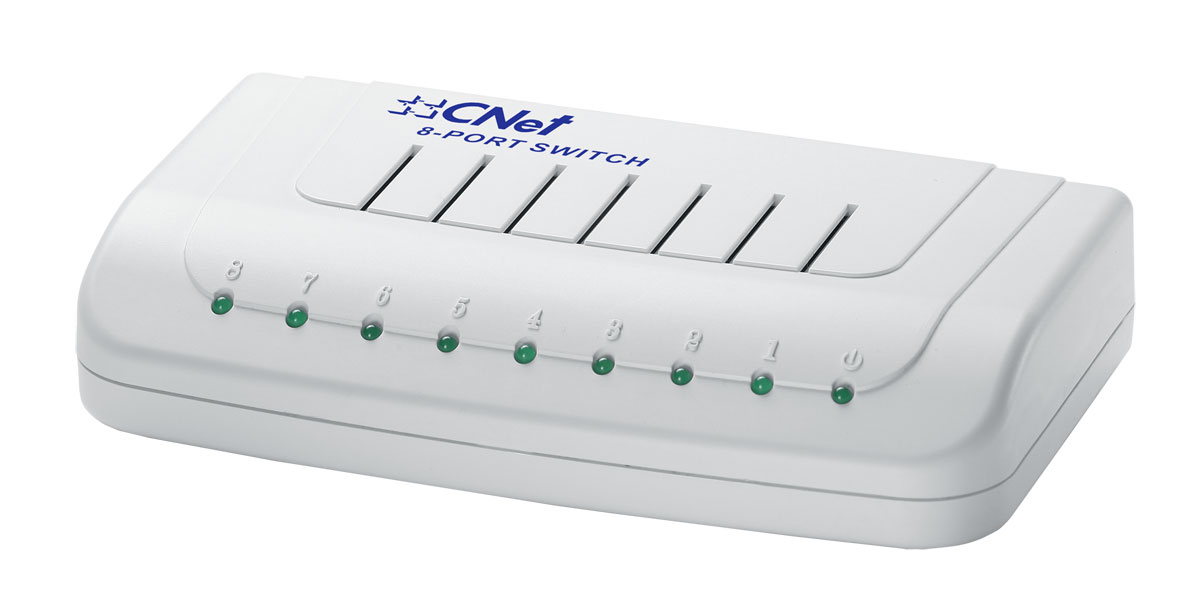

Switch 8 porturi 10/100 Mbps C-Net.
Specificatii:
Standarde acceptate: 100BASE-TX, IEEE 802.3u 10BASE-T, IEEE 802.3 IEEE 802.3x Flow Control
Nr. Porturi: 100BASE-TX/10BASE-T
Media Support 100BASE-TX: Category 5 TP 10BASE-T: Category 3, 4 or 5 TP
Bandwidth 100BASE-TX/10BASE-T: 200/100/20/10Mbps, via Auto-Negotiation
Forwarding/Filtering Rate 148810 packets/second per port @ 100Mbps, maximum
14881 packets/second per port @ 10Mbps, maximum
Latency 3.1 μsec @100Mbps minimum
14 μsec @ 10Mbps minimum
MAC Addresses 1K Six (6)-Bytes MAC address entries (maximum)
Self-Learning
Buffer Memory 512K bits
Duplex Modes All ports support Half-Duplex and Full-Duplex operation
Auto-MDI/MDIX All ports support Auto-MDI/MDIX
LED Indicators One (1) for Power On/Off
One (1) per port for Link/Activity
Environment Operating Temperature: 0 ~ 45 C (32 ~ 113 F)
Storage Temperature: -20 ~ 70 C (-4 ~ 158 F)
Humidity: 10% ~ 90% Non-Condensing
Certificari: FCC, CE, RoHS
Dimensiuni: 145 x 85 x 25 mm (5.7 x 3.35 x 0.98 inches)
Alimentator 5V inclus.
